ECOSENSE® ACTIVE PART
| Quantity | Unit price |
|---|---|
| To 2 |
€5,000.00*
|
| To 6 |
€4,500.00*
|
| To 20 |
€4,000.00*
|
| From 21 |
€3,500.00*
|
Available, delivery time: 2-3 Wochen
"ECOSENSE® ACTIVE PART"
Your Advantages at a Glance
ECOSENSE® ACTIVE PART is based on our proven MSENSE® DGA sensor family, whose products have already been delivered thousands of times and have proven themselves in operation.
By consistently focusing on standard product variants and investing in new manufacturing technologies, we can offer proven functionality and high quality standards at the best price-performance ratio on the market. We have the most advanced and possibly the only truly industrialized production lines for transformer sensors in the world.
ECOSENSE® ACTIVE PART sensors are supplied with all the components required for installation. Commissioning is simple and requires no modification to existing equipment or special qualifications. All you need is a power supply.
Easy handling
- Simple installation
- Can be retrofitted
- Self-explanatory
Cost-effective
- Best price/performance ratio
- Attractive graduated prices
- Short delivery times
Uncomplicated
- Two variants
- Works with any database
- Intuitive
Highest quality standard
- Developed by experts
- Maintenance-free
- Durable and reliable

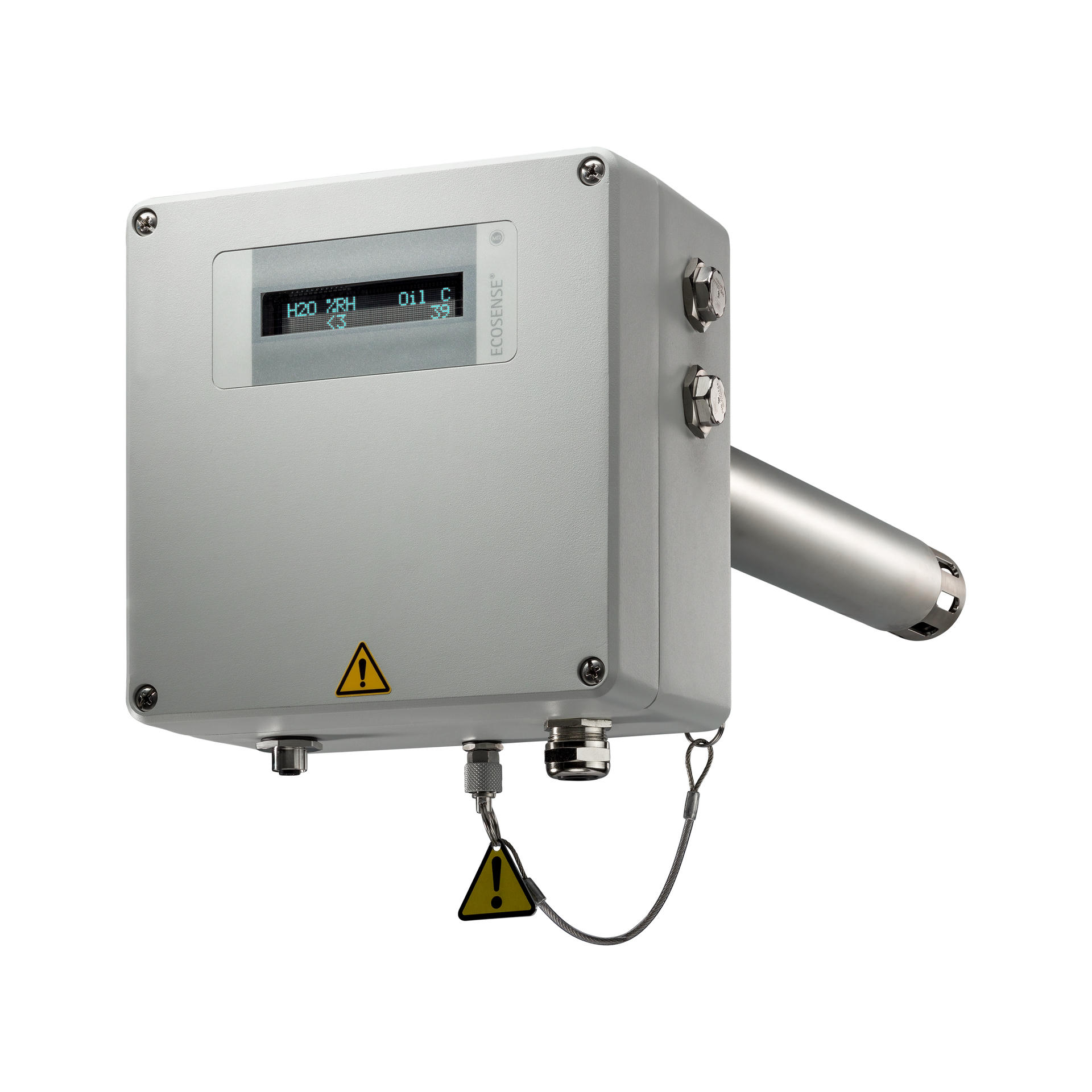

ECOSENSE® Active Part
Early warning system, monitoring, alarm system
| Feature | Supported | |
|---|---|---|
| Measuring component: | Moisture in oil | ✓ |
| Hydrogen H2 | ✓ | |
| Carbon monoxide CO | ✓ | |
| Retrofit | ✓ | |
| Interpretation and errors: | Measurement of absolute values | ✓ |
| Trend analysis | ✓ |
What you get:
- ECOSENSE® ACTIVE PART

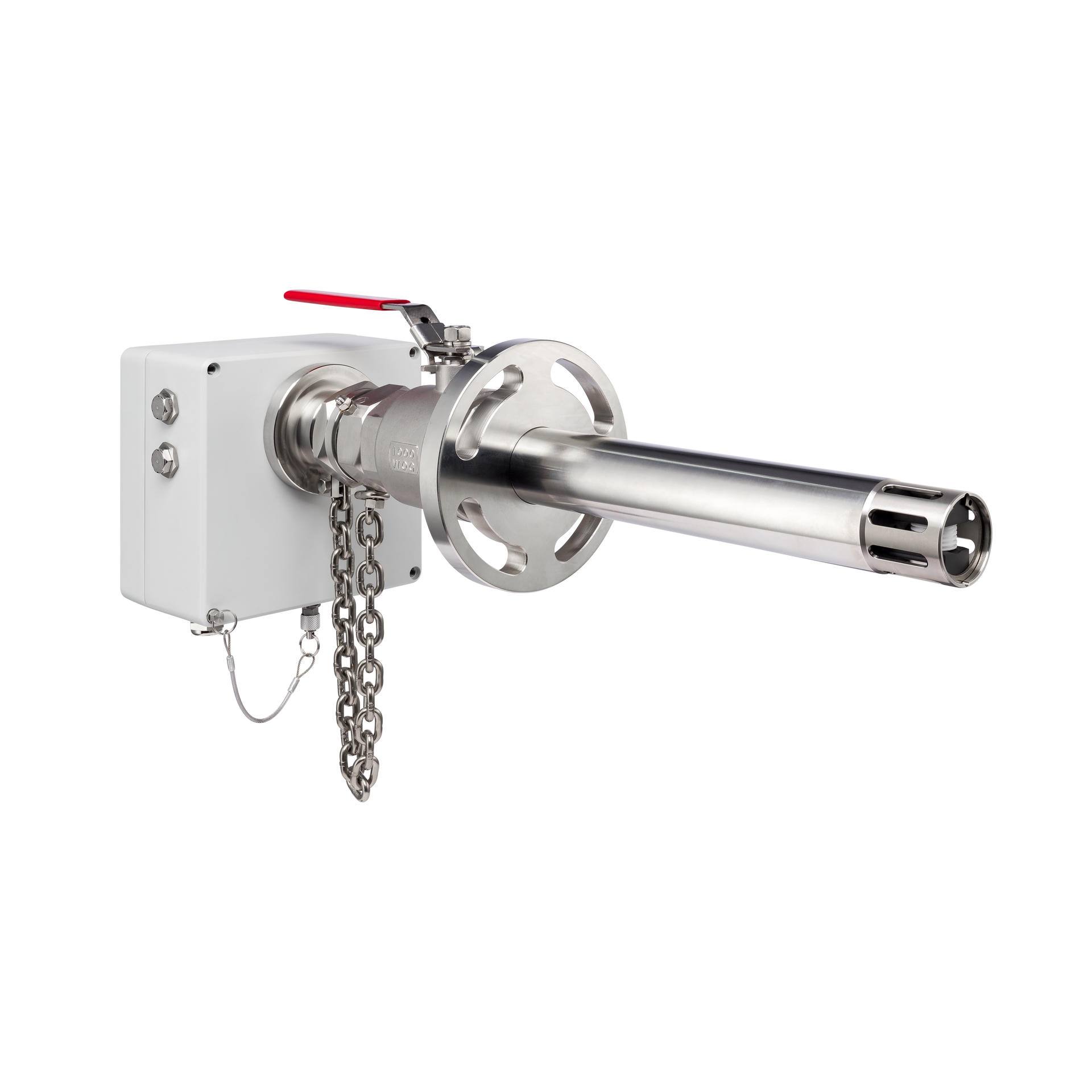

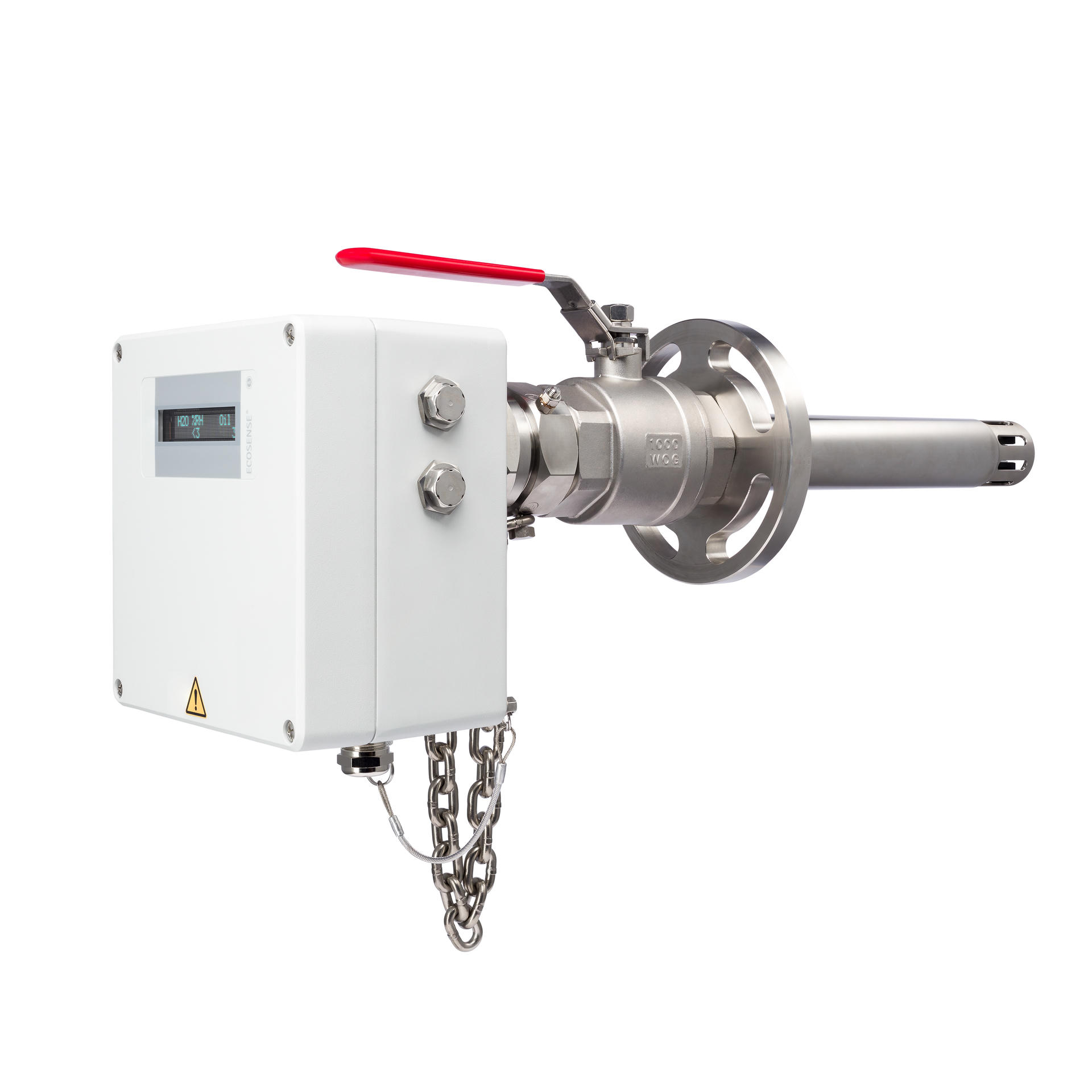

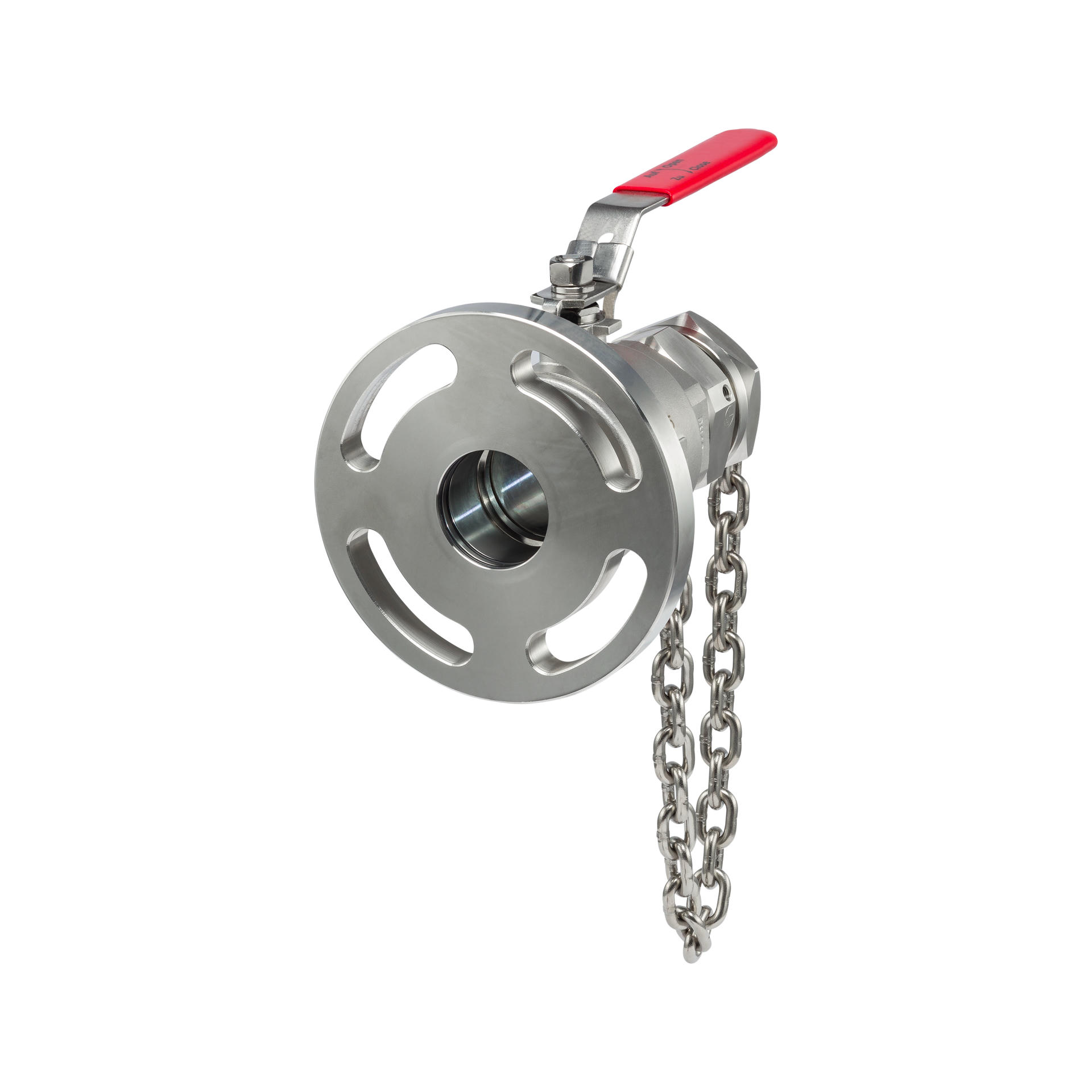

- Flange with ball valve

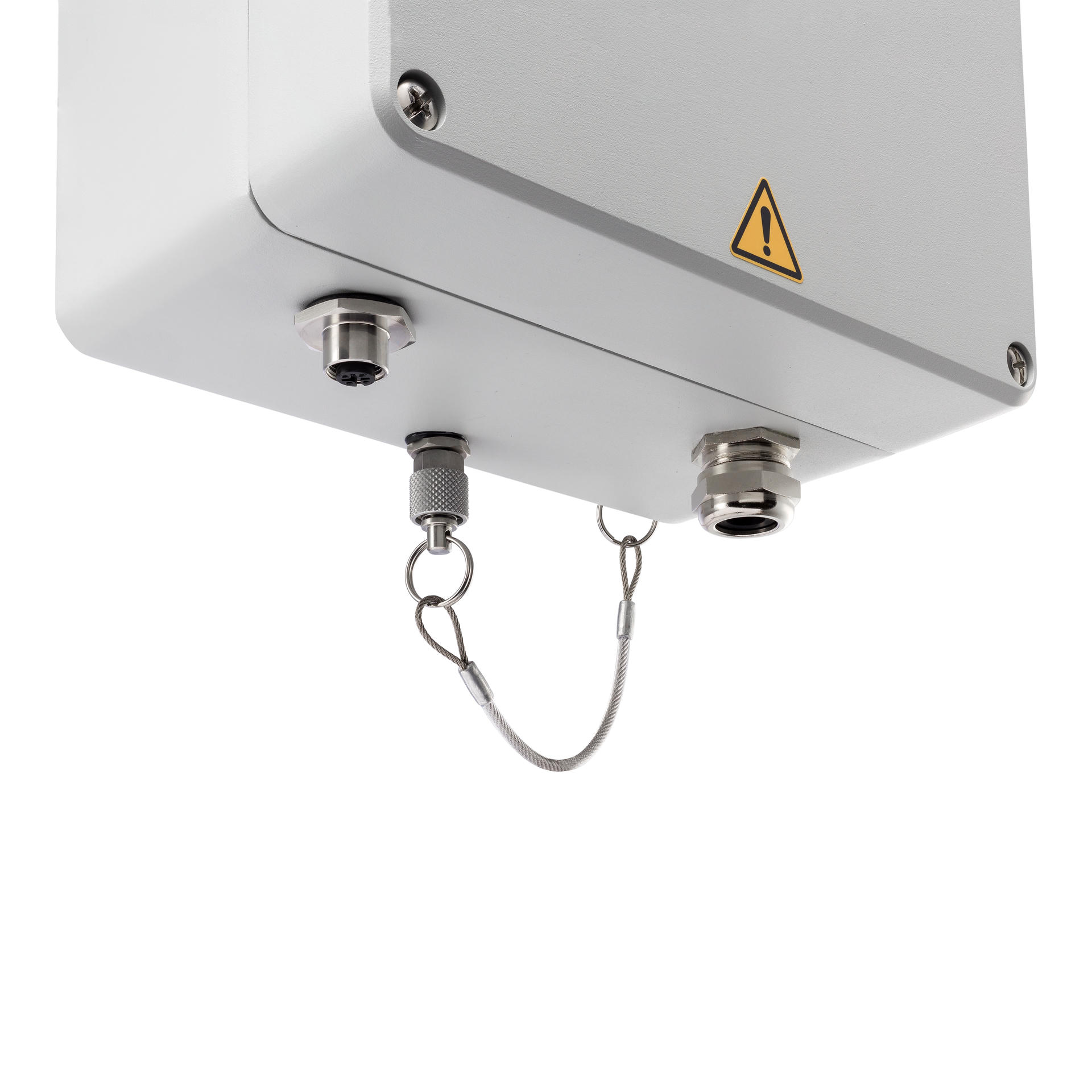

- Safety chain and dummy plug
- Modbus RTU connector (only 1x per order)

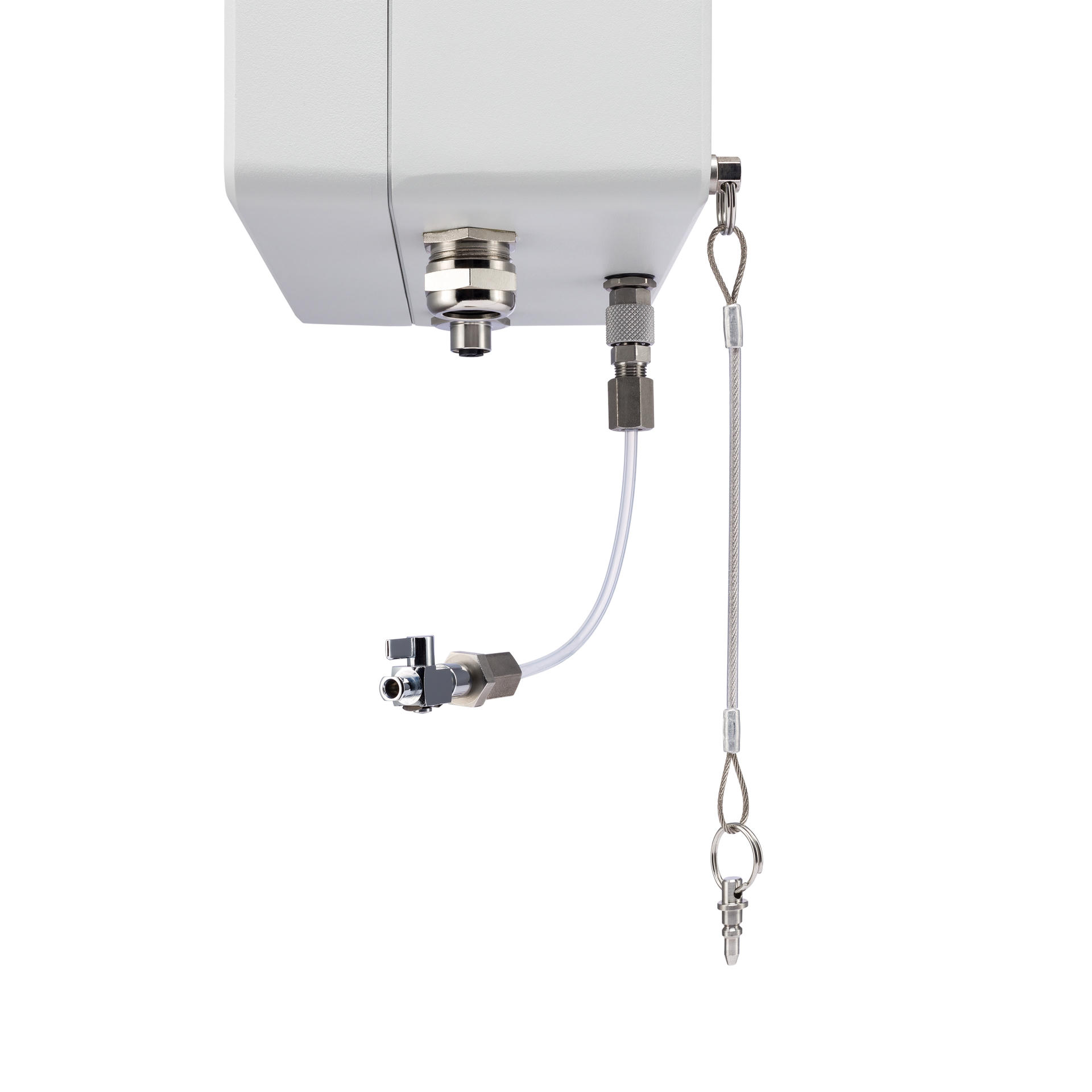

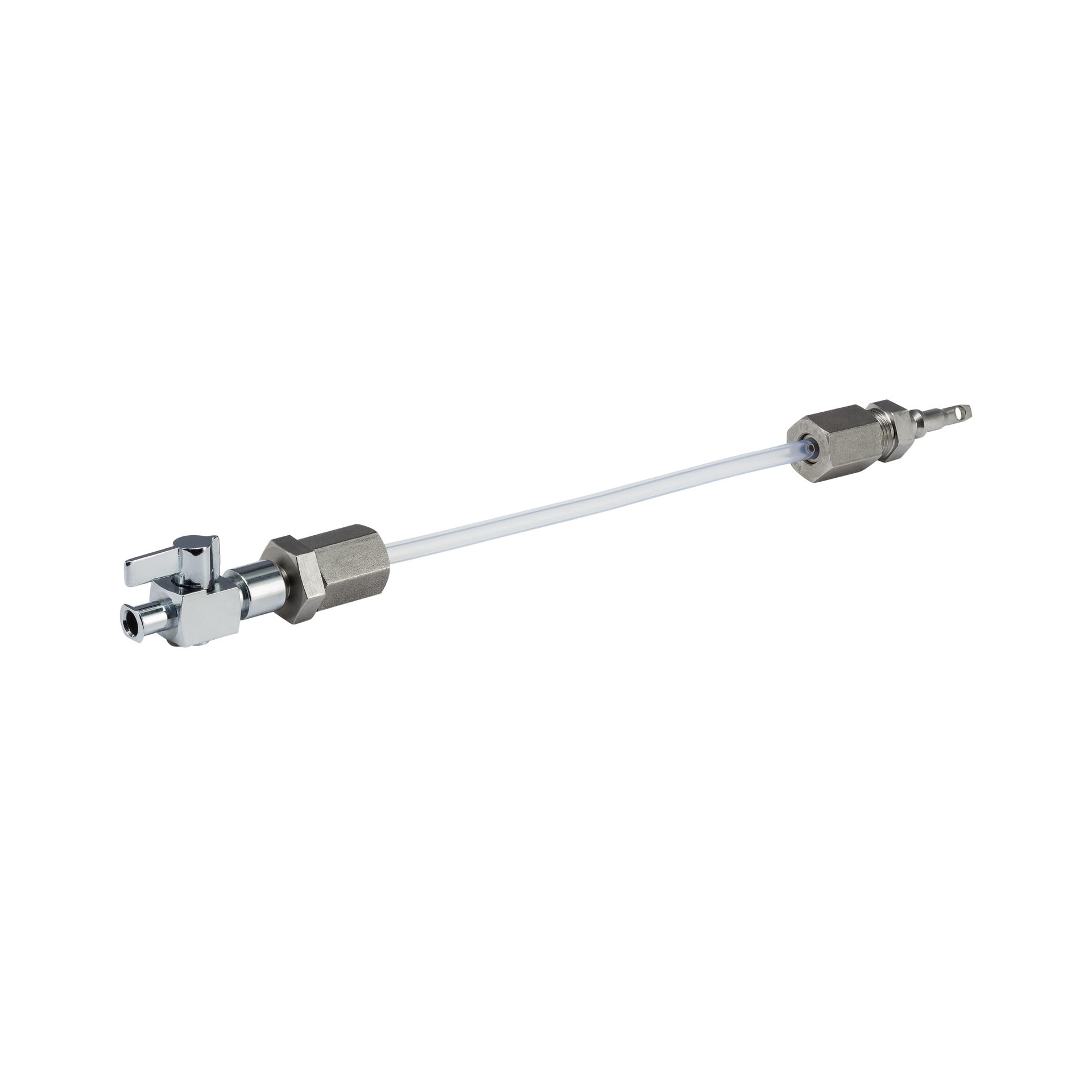

- Luer-Lock 1/8 adapter

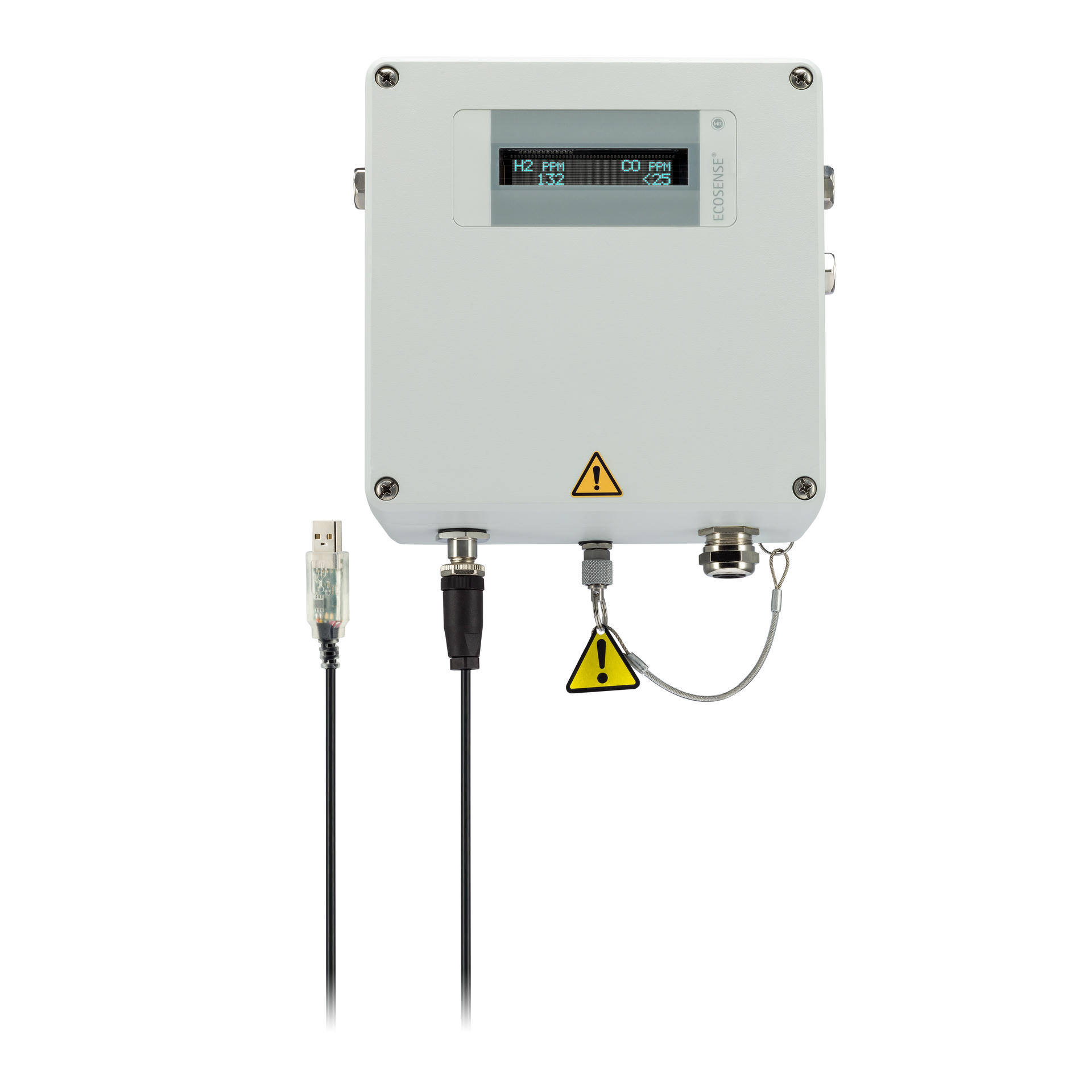

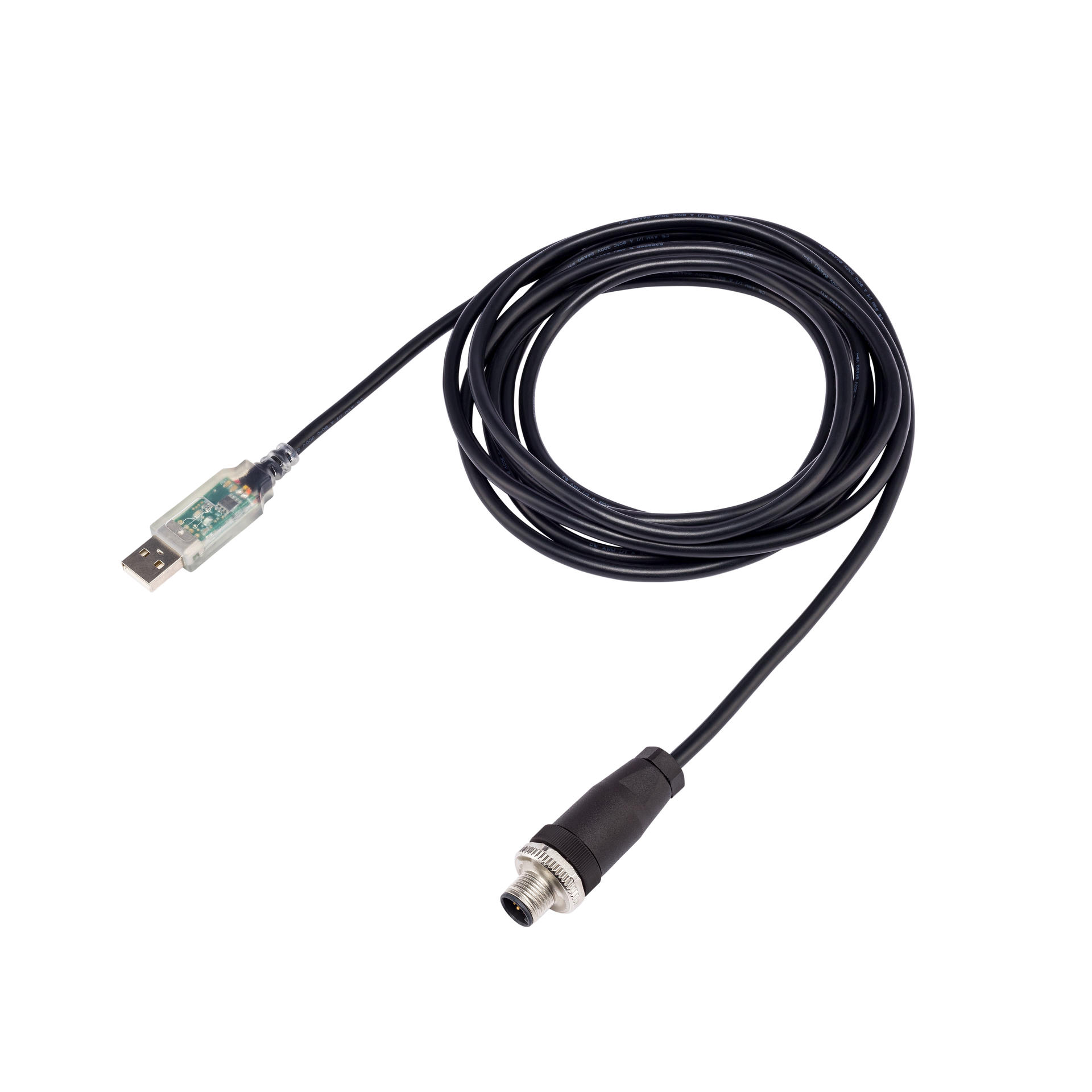

- Modbus RTU/USB adapter

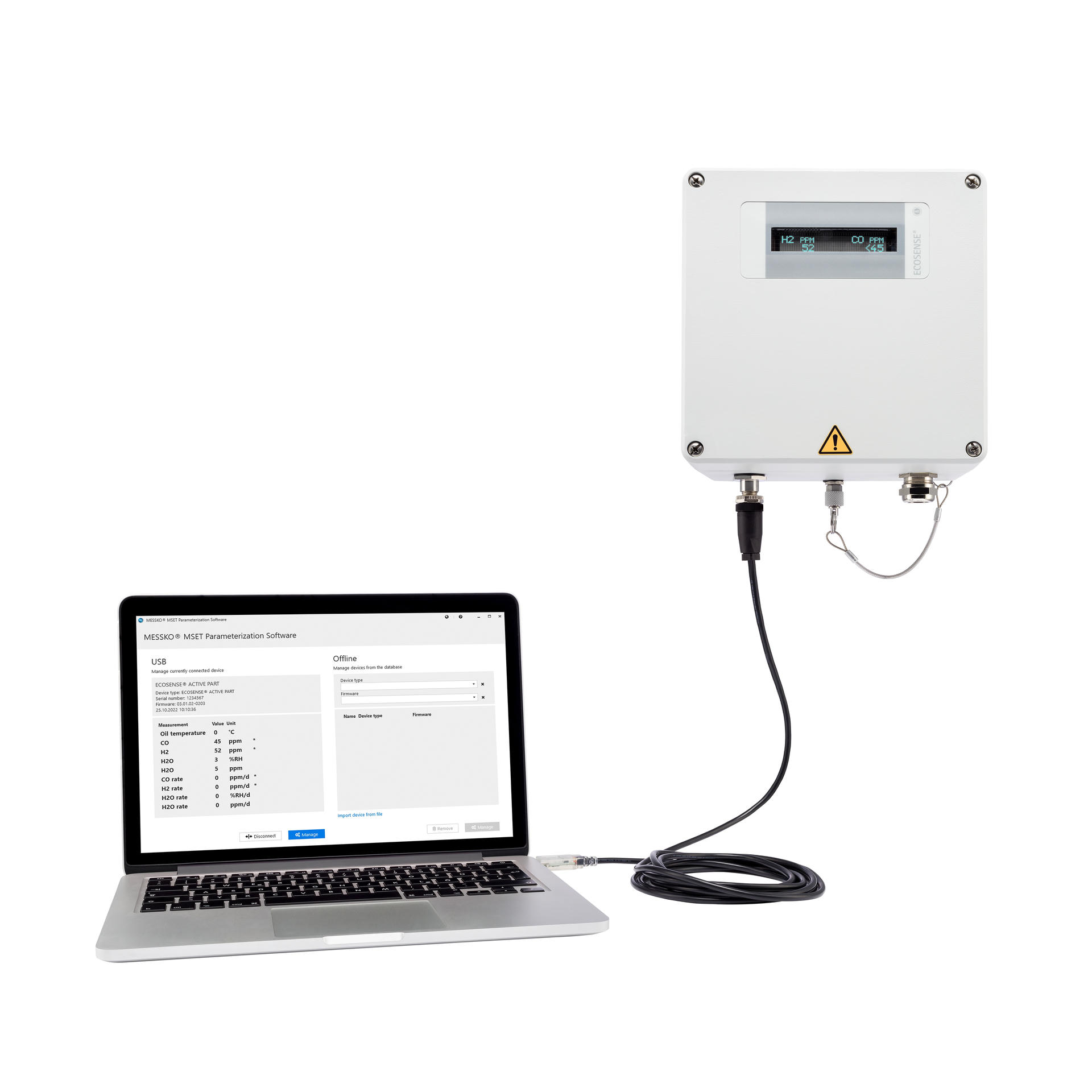

- Operating instructions and MSET software license (provided via the portal)
Documents
| Name | Category | Date | File size | Download |
|---|---|---|---|---|
ECOSENSE® ACTIVE PART Flyer |
Flyer | 5.10.2023 | 531 KB |
 |
|
ECOSENSE® ACTIVE PART Manual |
Operating instructions | 07.12.2022 | 8.1 MB |
|
|
ECOSENSE® ACTIVE PART Technical Data |
Specifications | 16.08.2022 | 1.389 KB |
|
|
MESSKO® MSET |
Operating instructions | 16.01.2023 | 2.5 MB |
|
FAQ - Frequently Asked Questions
Could ECOSENSE® ACTIVE PART be used with synthetic and natural ester oils?
The material used is chemically stable against synthetic and natural ester oils. However, the calibration stored in the device is only tested and valid for mineral oils. There is currently no explicit calibration available for synthetic and natural ester oils.
Does ECOSENSE® ACTIVE PART need to be calibrated regularly?
No. The sensor is calibrated at the factory. However, due to operating and environmental conditions, it may be useful to adjust the sensor using reference data from a laboratory. This field calibration leads to a reduction in the measurement uncertainty.
Does the sensor require additional operating resources?
No. Apart from a power supply, no other additional equipment is required.
Does the sensor require regular maintenance?
No. The sensor is maintenance-free and does not require regular servicing or the regular replacement of consumables.
Can the sensor also be used at altitudes above 2000 m?
Yes. The sensor can be used up to an altitude of 4000 m.
Which communication protocols does the sensor provide?
The sensor communicates via a digital RS485 interface with a Modbus RTU protocol. If the sensor is integrated into the ETOS transformer monitoring system, other protocols such as IEC 61850 and DNP3 can be made available. If the sensor is operated without ETOS, additional protocols such as IEC 61850 and DNP3 can be made available with the aid of an additional protocol converter.
Can the sensor also be operated if the sensor head cannot be placed directly in the transformer tank?
Yes. The sensor head can also be installed up to 20 cm back from the transformer tank (recessed installation). This has no negative effect on the operation of the sensor. Installations at a greater distance from the transformer tank than 20 cm must be clarified with MR in advance.
How large is the sensor's data memory?
The storage capacity is sufficient for a data volume of approx. 10 years.
Can the sensor also be used offshore?
No. An offshore version of ECOSENSE® ACTIVE PART is not available. There is an offshore version of the MSENSE DGA 2/3. Please contact us and we will be happy to put you in touch with an expert.
Problem with the installation? No problem at all!
Discover our how-to videos for many products.
Welcome to our how-to videos section, your ultimate guide to easy installation, commissioning and maintenance. Our videos provide you with clear and understandable instructions specifically designed to make it easier for you to use our products.
These videos complement our operating instructions and provide additional visual support for a seamless implementation of your projects. Take a look at our videos and make your life easier.
Dissolved Gas Analysis (DGA)
Download the DGA Application Guide and protect your transformers from unexpected failures
Our free Application Guide provides information on how Dissolved Gas Analysis (DGA) can help detect transformer failures early.
Learn what problems are caused by gases in the transformer oil and how continuous monitoring of hydrogen, carbon monoxide and moisture using an online DGA sensor can help prevent costly transformer downtime.
With your newfound knowledge, you can improve your equipment monitoring and minimize the risk of downtime and costly repairs.
